Designation: The system is designed for remote control and reading of the consumption of cold and hot water from a distance, without entering the subscriber's dwelling and its presence.

    All types of water meters of Belasitsa AD have the possibility of pulse output and for embedding in the system.

     Implementation options:

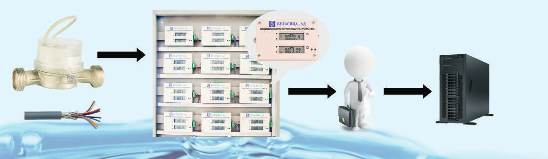

    The first version of the system consists of:

Water meters with built-in pulse output / cable /;

Individual reading devices;

Common panel;

Multicore cable.

Each water meter transmits data to an individual reading device. Each individual reading device monitors the consumption of 1 or 2 water meters for hot or cold water. On each of the two displays through a push-button the meter readings or factory numbers can be read, which provides the subscriber identification. The individual reading devices are mounted in a common panel, located on the ground floor of the building, where the information can be collected by the collector.

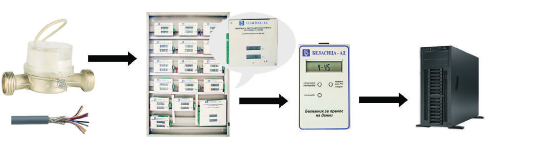

    The second version of the system consists of:

All elements of the first option built up with

Data concentrator

Electronic Notebook /Tablet/

Each water meter transmits data to an individual reading device. Each individual reading device monitors the consumption of 1 or 2 water meters for hot or cold water. On each of the two displays through a push-button the meter readings or factory numbers can be read, which provides the subscriber identification. The individual reading devices are mounted in a common panel, located on the ground floor of the building, where the information can be collected by the collector.

The information from the individual reading devices is collected in a common electronic block (concentrator) from which it can be read on the display or downloaded by the collector from an electronic notebook /tablet/. After that, this information can be sent to the PC server of Water Supply Company.



    Advantages:

• Reading is taken outside the house at a distance of up to 150 m;

• Possibility to compare the readings between the mechanical clock and the display;

• High reliability of the built-in Hall pulse sensor;

• Easy way to work with the software;

• Impossibility to change or delete the accumulated information;

• Registration of the attempts for unauthorized intervention.

    Implementation

    Belasitsa AD offers and implements complete projects of systems for remote reading of water consumption consisting of water meters and panels with reading devices, system installation and setup, and warranty. The service is available for entire buildings or condominium, both for new and old buildings in old buildings, where wiring can be done in the niches of the pipes. It is possible to implement the system for one apartment, the reading device is brought to the front door, and for several apartments on one floor.

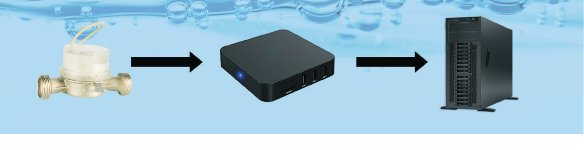

    A third version (GSM module) of the system consists of: Belasitsa water meters with radio recording option, module for data transmission via GSM network, server of the Water Supply Company.

    Reports can also be viewed by the user over the Internet.

    With this system, no need for a collector to visit the customer's address, the water consumption data being transferred on line (in real time) to the Water Supply company's server. There is no need for intermediate devices to transfer the data.

    This option does not require wiring the building. The installation is maximum simplified. The option is suitable for large consumers who want to monitor water consumption remotely, as well as for timely detection of leaks and atypical consumption.
